Hub-and-Spoke Virtual Network Architecture

Overview

I built a secure Hub‑and‑Spoke network architecture in Microsoft Azure to demonstrate my ability to design cloud networks that are scalable, well‑segmented, and aligned with enterprise best practices. The hub hosts shared services like Bastion, DNS, and peerings, while each spoke contains isolated workloads with tightly governed traffic paths. This project highlights my knowledge of cloud networking, routing design, Zero Trust principles, and operational governance. It also shows that I can build environments that are secure, predictable, and ready for real‑world workloads.

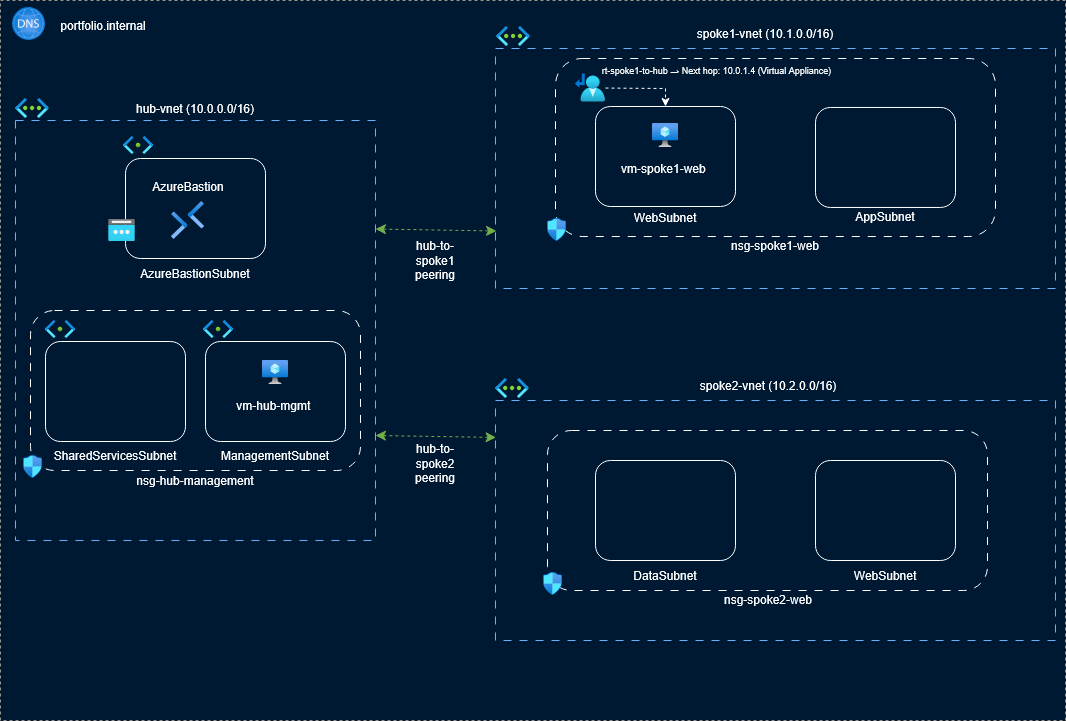

Architecture Diagram

Project Screenshots

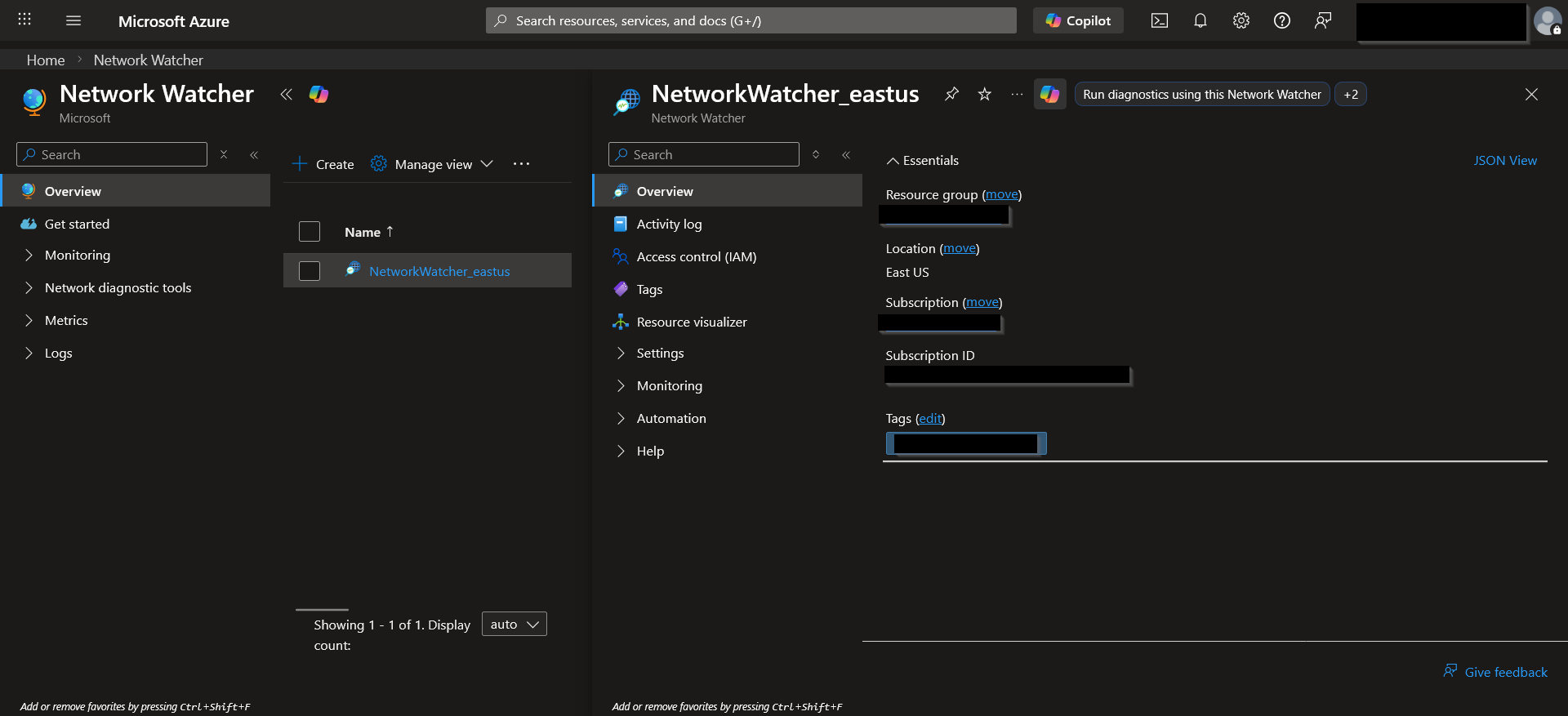

Network Watcher enabled in East US to support topology, routing, and connectivity diagnostics.

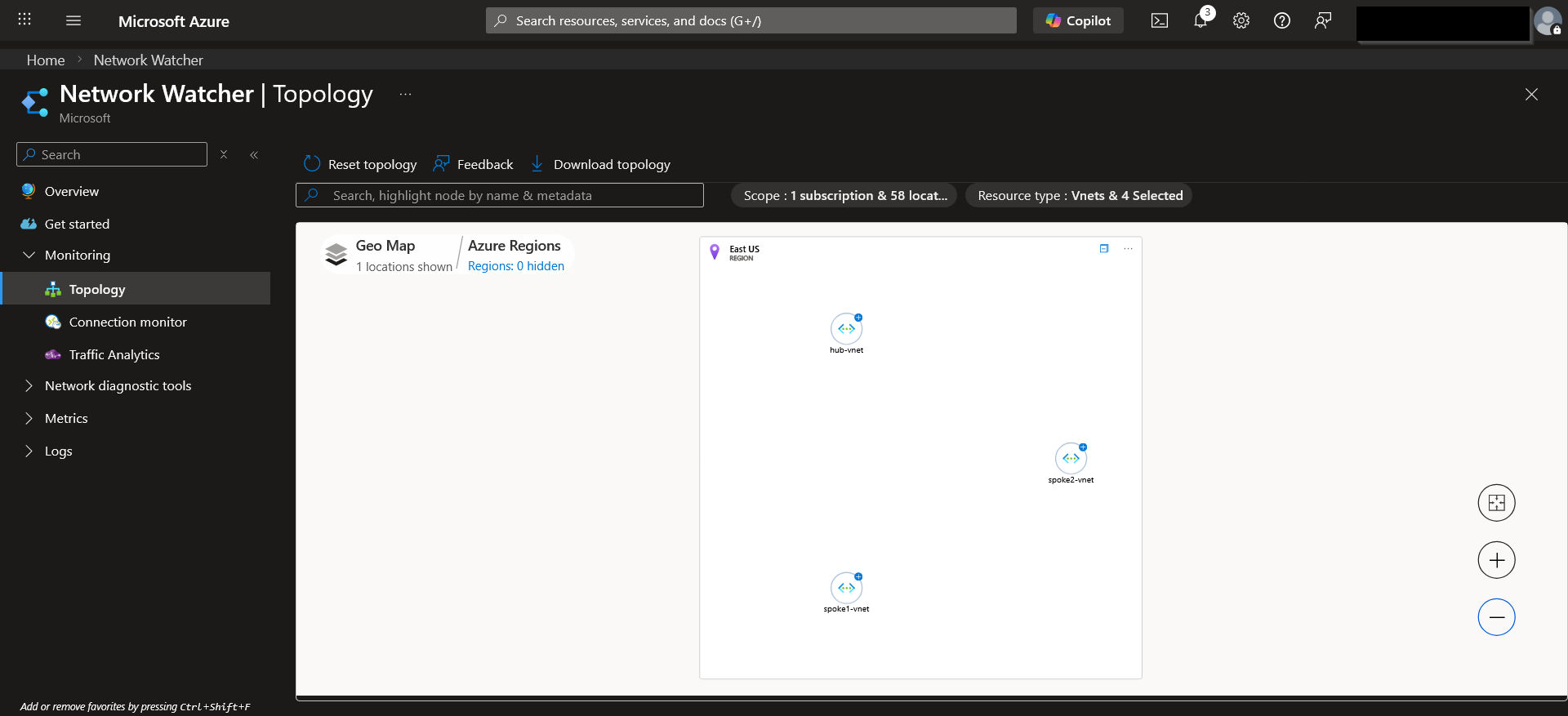

Initial topology view showing VNets before peering — no cross‑VNet connectivity yet.

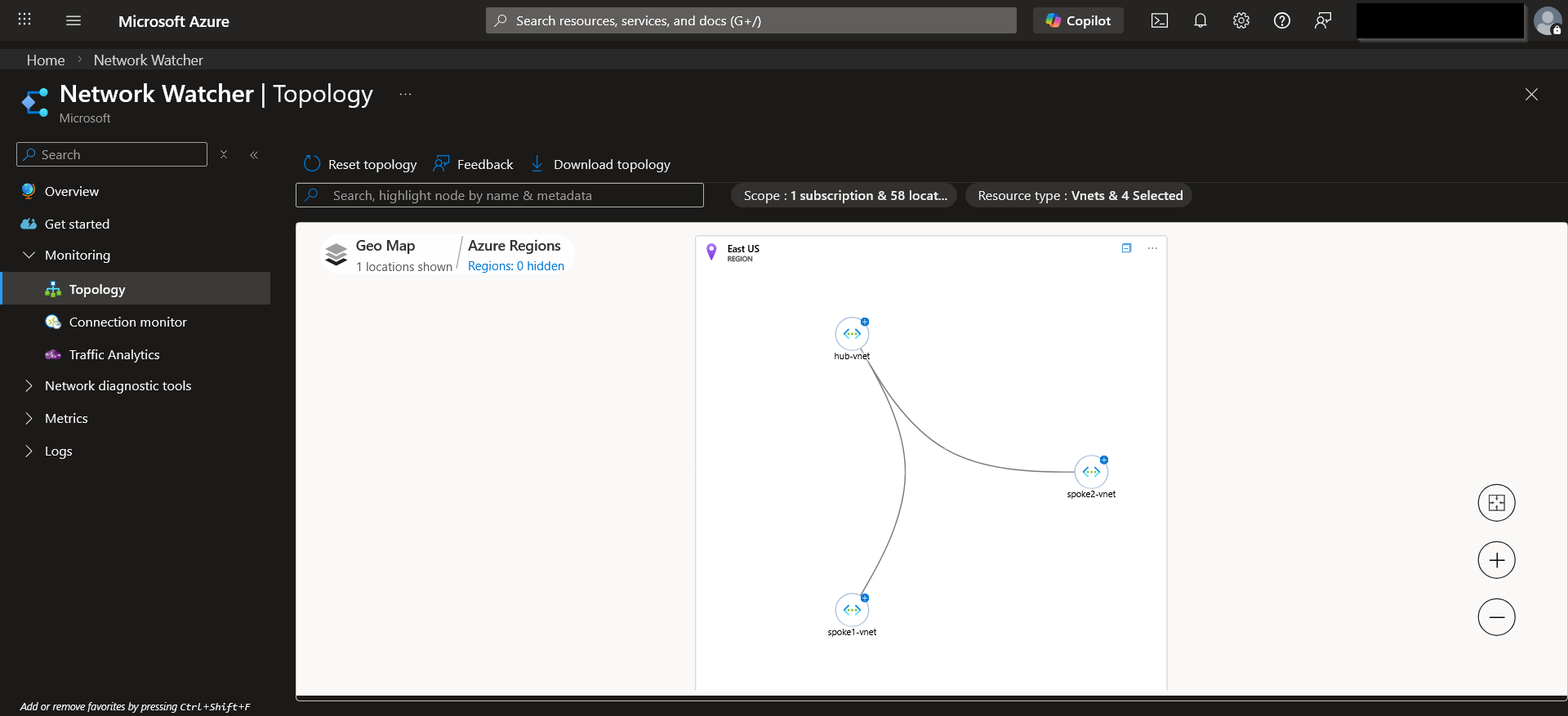

Updated topology after configuring VNet peering between hub and spokes.

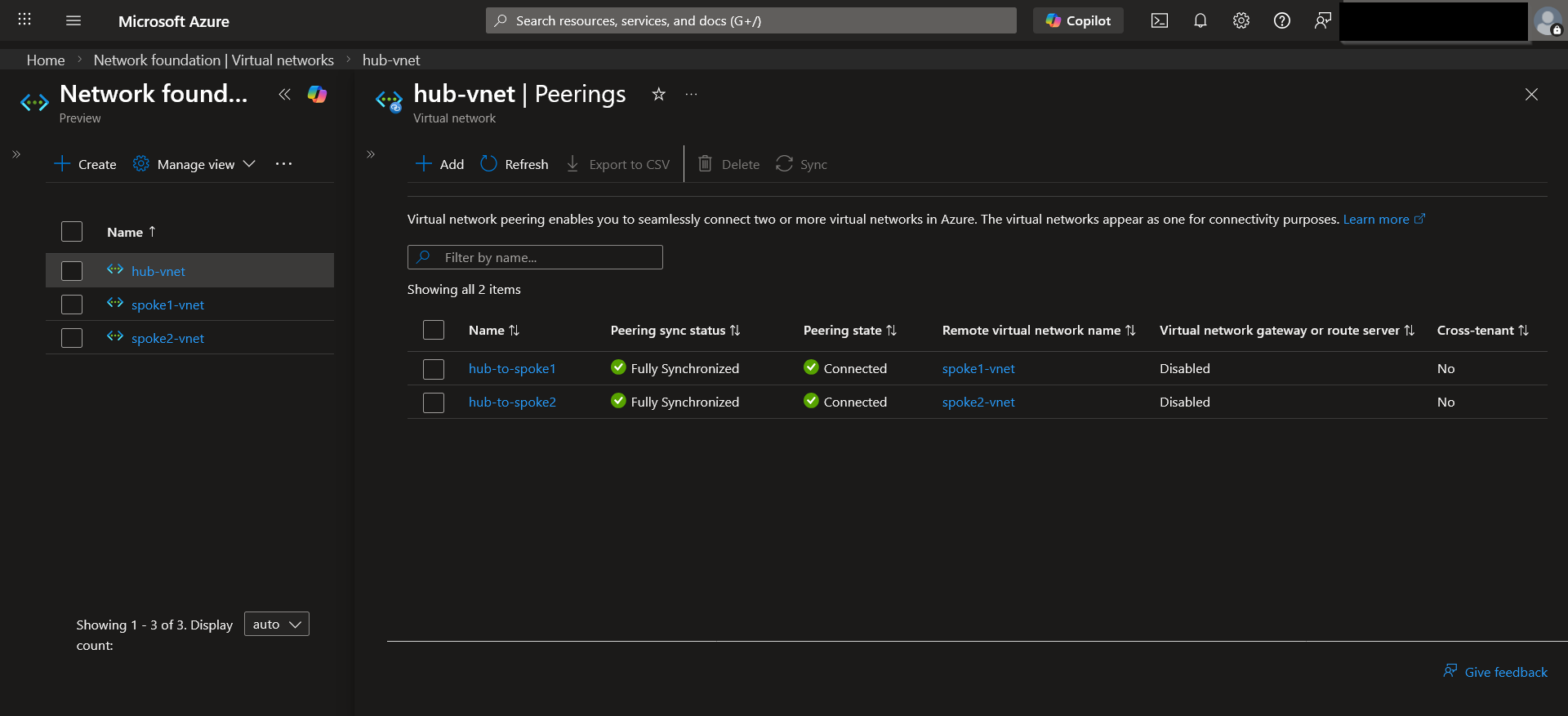

Verification of active VNet peerings confirming bidirectional connectivity across the environment.

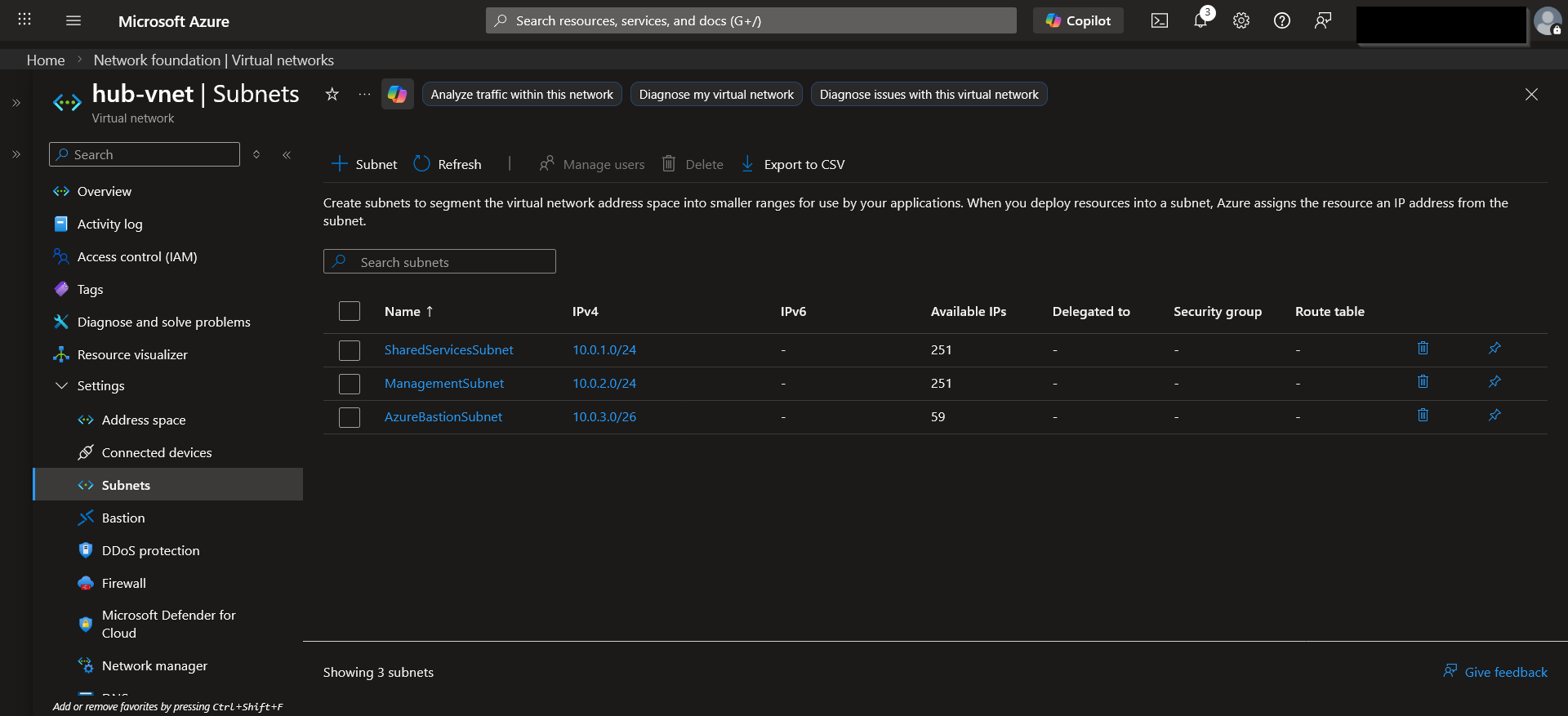

Subnet segmentation within hub‑vnet, including Management, Shared Services, and AzureBastionSubnet.

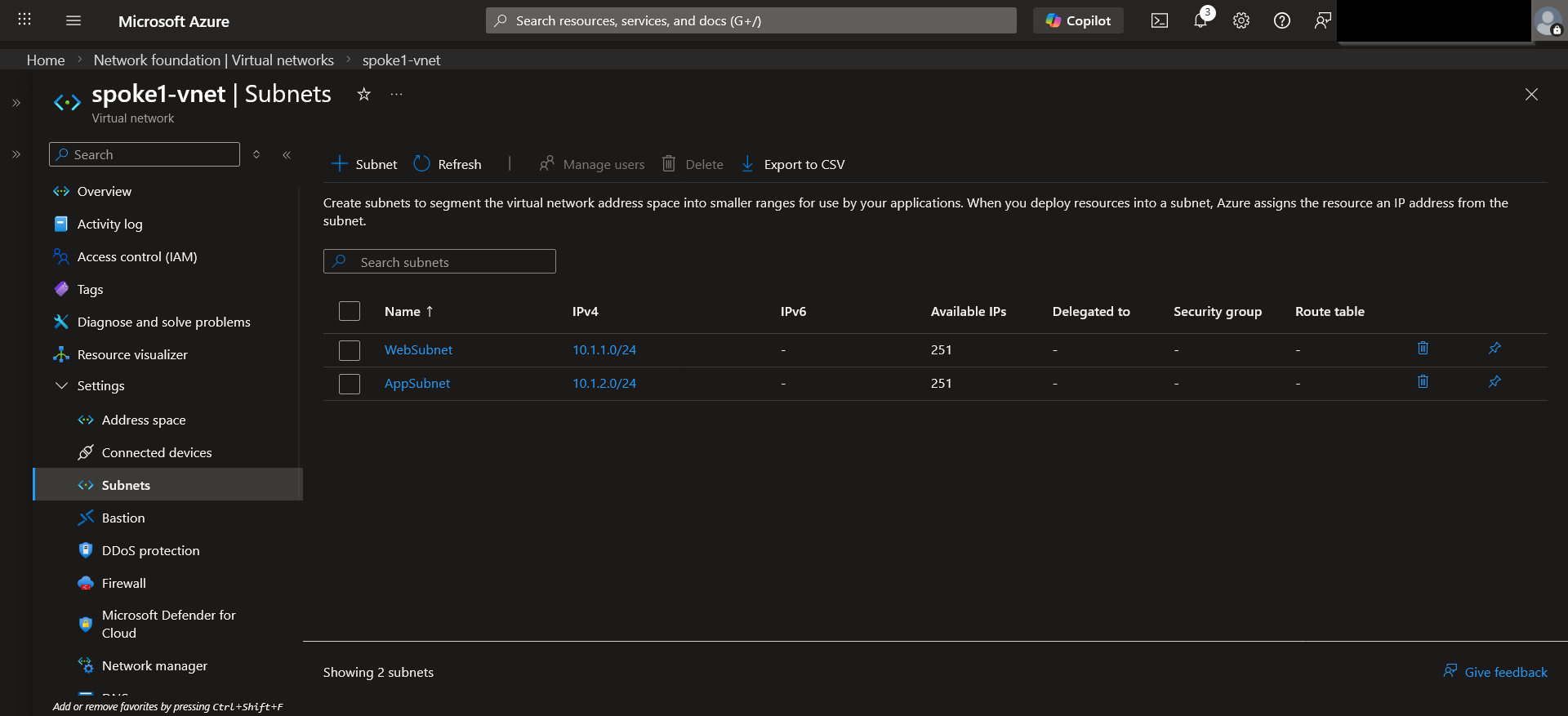

Subnet layout for spoke1‑vnet hosting the web and application tiers.

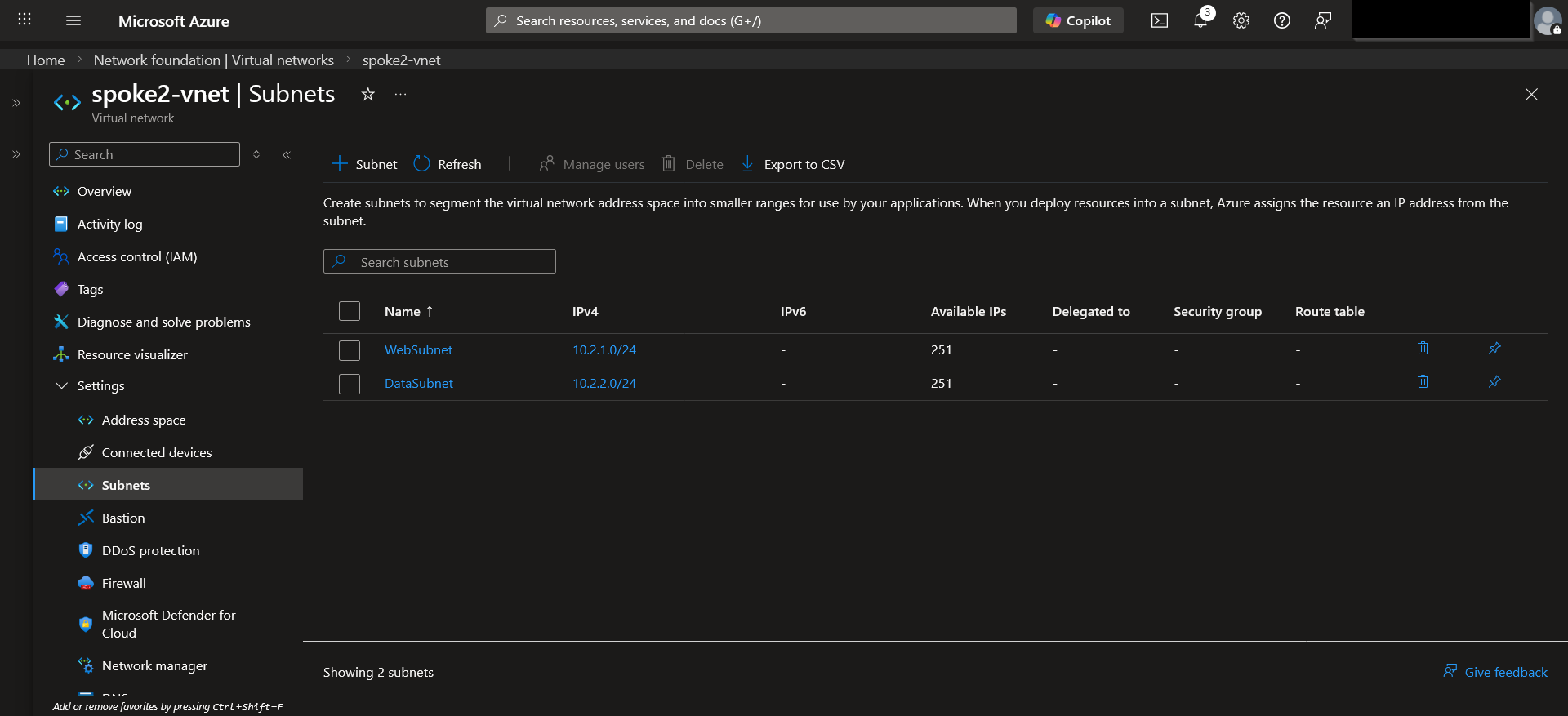

Subnet layout for spoke2‑vnet hosting the data tier.

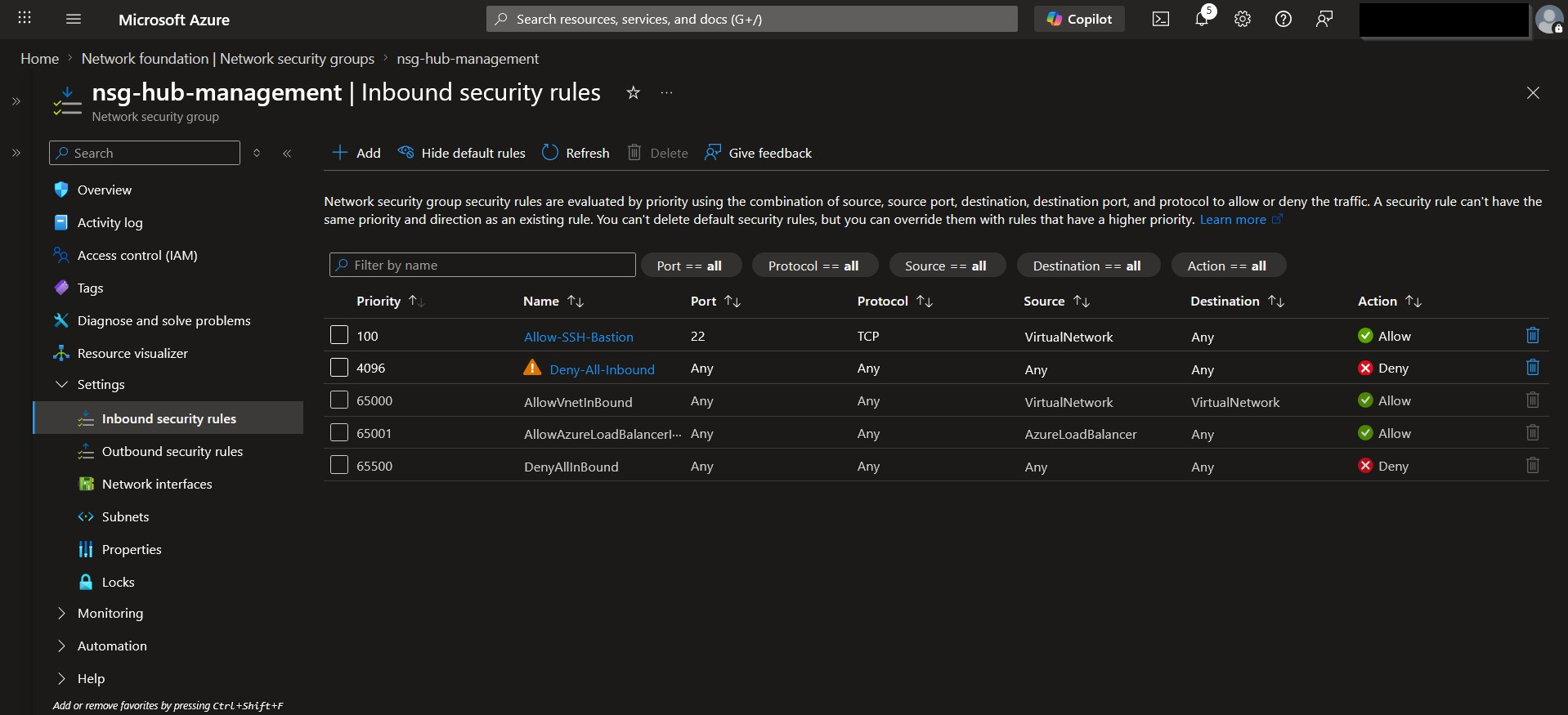

NSG assignment for the ManagementSubnet enforcing restricted administrative access.

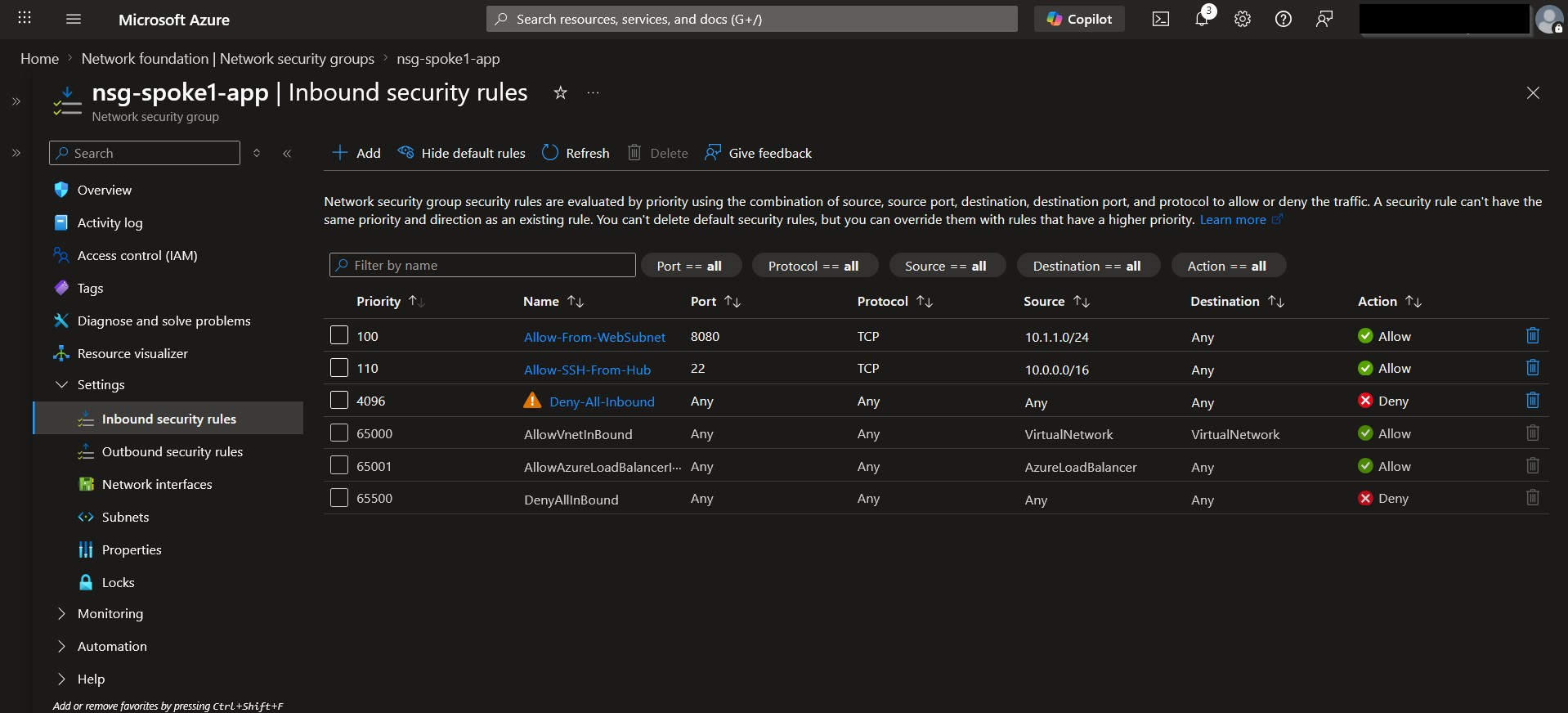

Application subnet NSG rules permitting only required internal communication paths.

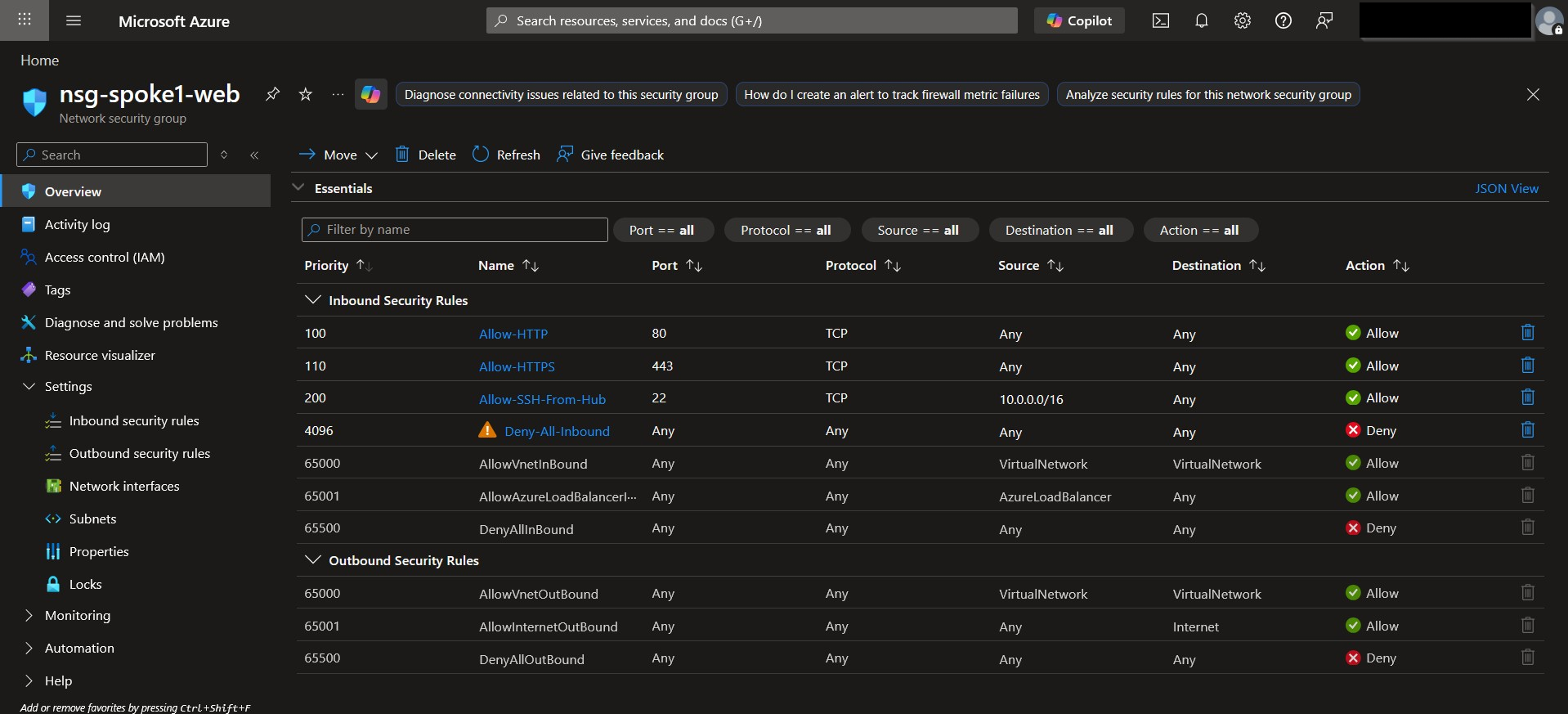

NSG rules for the spoke1 web subnet allowing HTTP/HTTPS and hub‑initiated SSH.

Data tier NSG rules enforcing strict inbound controls and limiting access to approved sources.

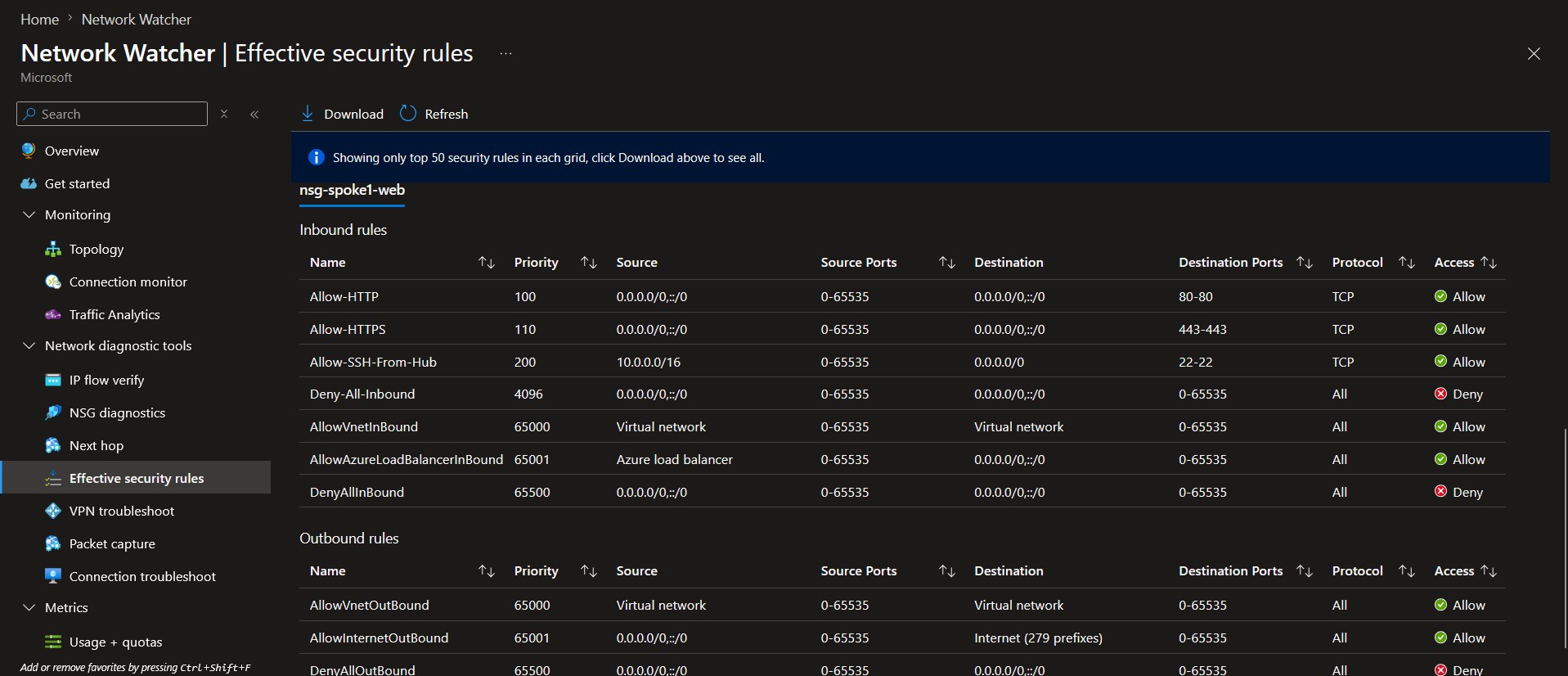

Effective NSG rules for vm‑spoke1‑web showing the final combined inbound and outbound permissions.

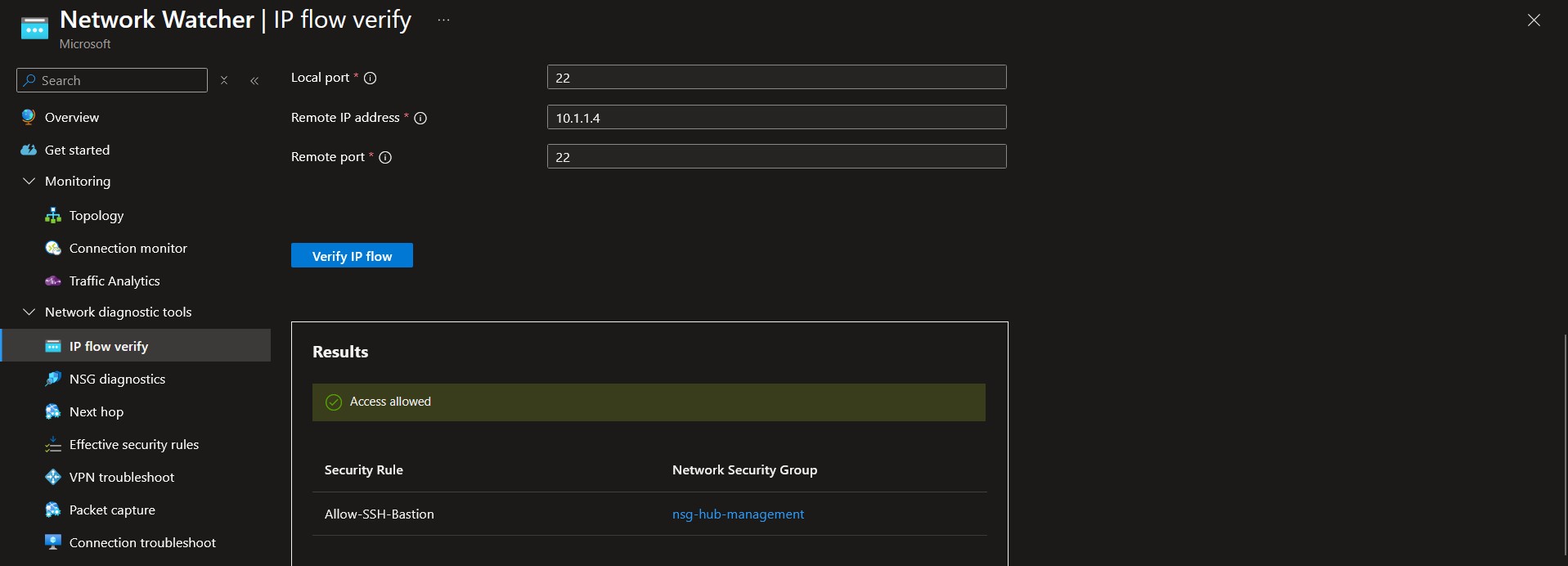

IP Flow Verify confirming SSH traffic from the hub to the spoke1 web VM is allowed.

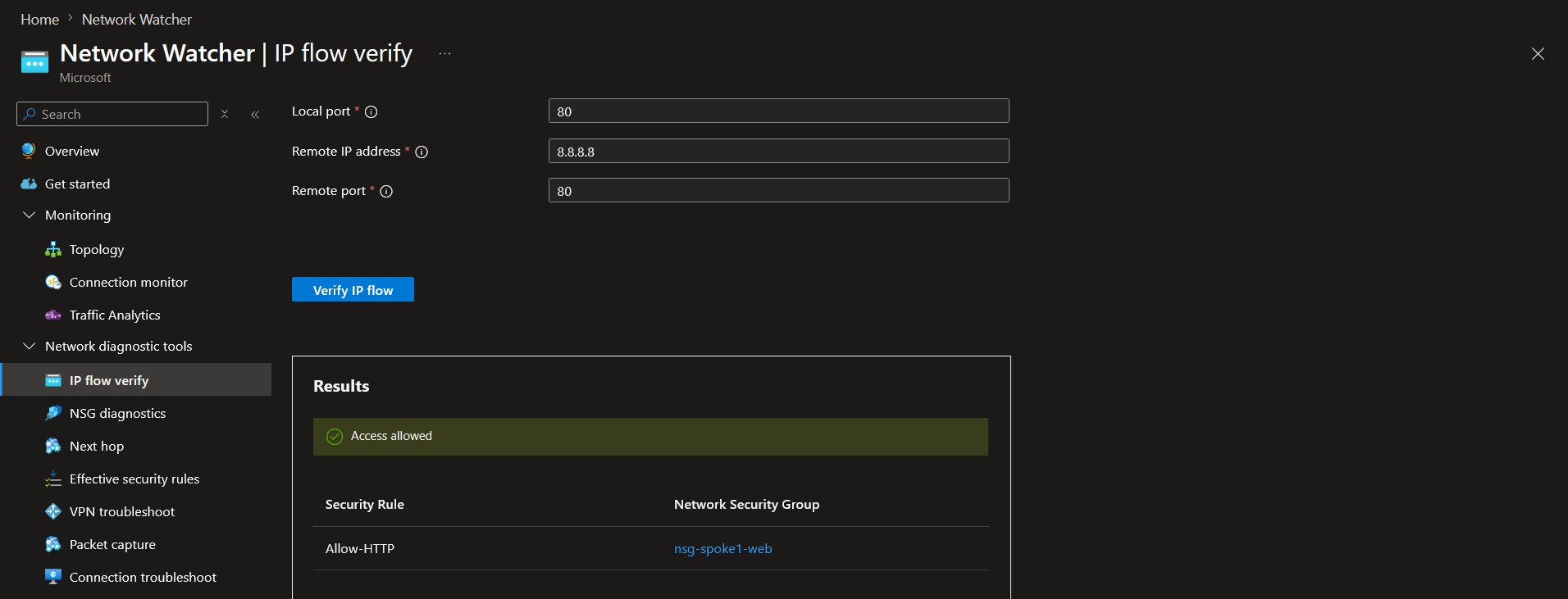

IP Flow Verify confirming inbound HTTP traffic from the internet is permitted.

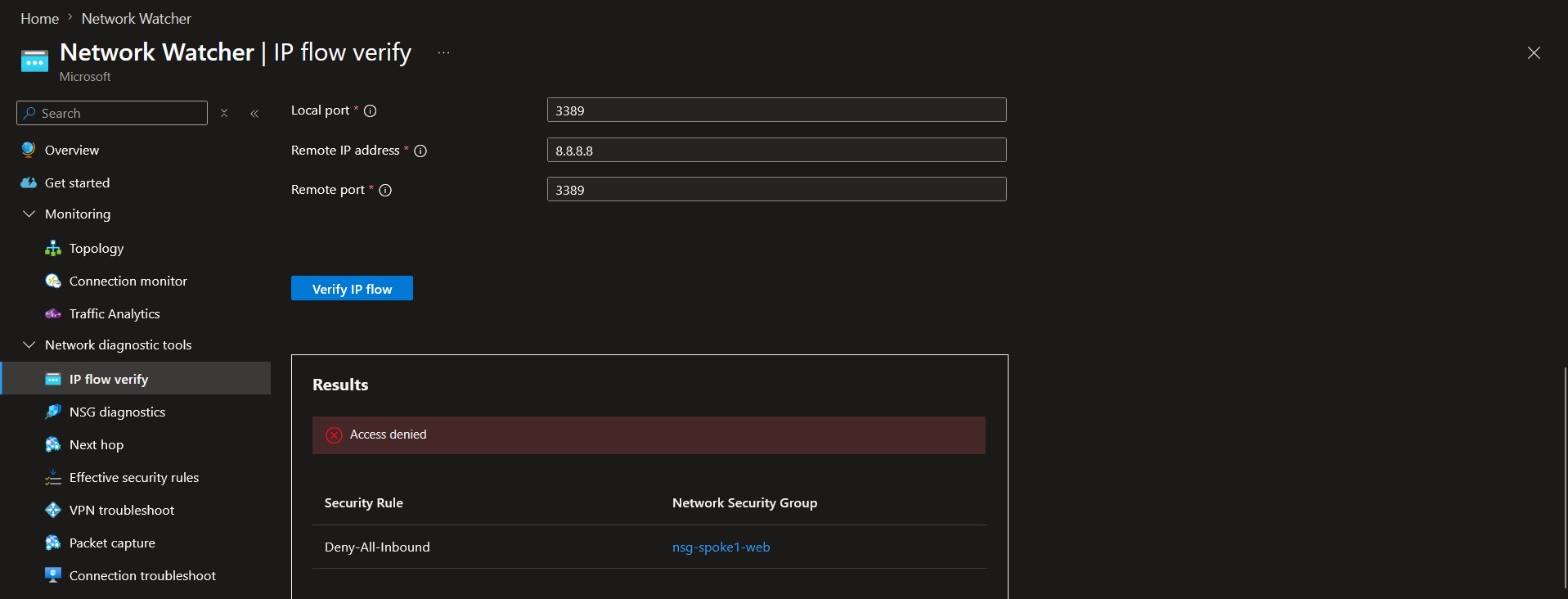

IP Flow Verify showing RDP traffic from the internet is correctly denied by NSG rules.

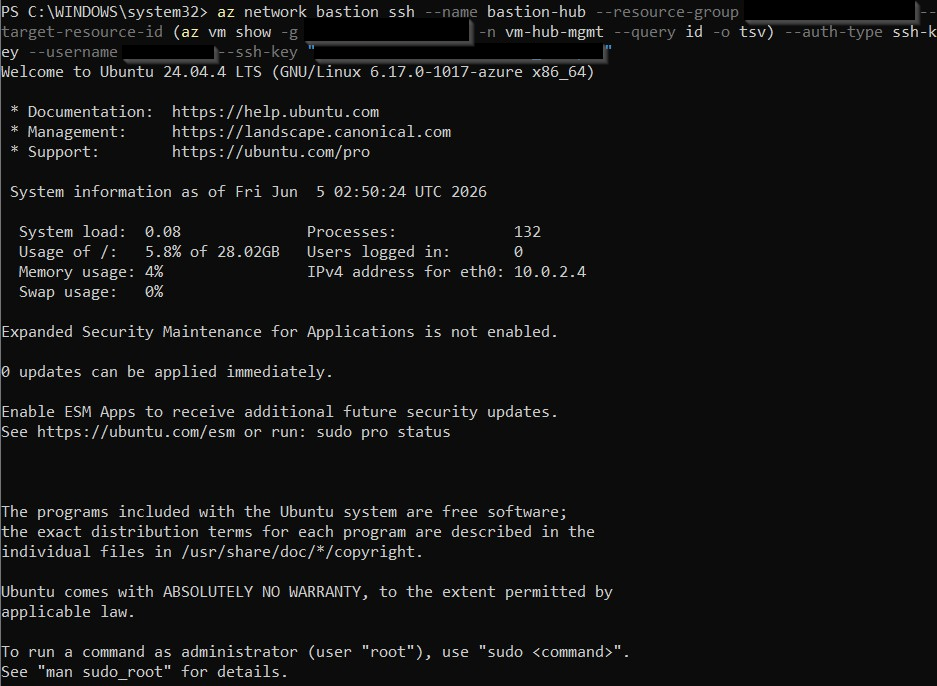

Secure SSH connection to vm‑hub‑mgmt via Azure Bastion, successfully authenticating with an SSH key and launching an Ubuntu 24.04 LTS session. The output confirms system health, resource usage, and private IP assignment (10.0.2.4) within the hub VNet.

Methodologies Used

Hub-and-spoke Topology Design

Cost Optimization

Network Segmentation

Infrastructure as Code (IaC)

Bastion Access

Route Architecture

Traffic Flow Modeling

Step-by-Step Walkthrough

1. Create the Resource Group

Create a new resource group in the same region for all project resources.

2. Build the Virtual Networks

Create hub-vnet (10.0.0.0/16) with:

SharedServicesSubnet (10.0.1.0/24)
ManagementSubnet (10.0.2.0/24)
AzureBastionSubnet (10.0.3.0/26)

Create spoke1-vnet (10.1.0.0/16) with:

WebSubnet (10.1.1.0/24)
AppSubnet (10.1.2.0/24)

Create spoke2-vnet (10.2.0.0/16) with:

WebSubnet (10.2.1.0/24)
DataSubnet (10.2.2.0/24)

3. Configure Hub‑Spoke VNet Peering

Peer hub ↔ spoke1 (two connections).
Peer hub ↔ spoke2 (two connections).
Do not peer the spokes to each other.

4. Create and Apply Network Security Groups

Create NSGs for:

hub ManagementSubnet
spoke1 WebSubnet
spoke1 AppSubnet
spoke2 WebSubnet

Add rules to allow required HTTP/HTTPS/SSH traffic and deny all else.
Associate each NSG with its corresponding subnet.

5. Create a Route Table (UDR)

Create a route table for spoke1.
Add a default route (0.0.0.0/0) pointing to a simulated NVA IP in the hub.
Associate the route table with spoke1 WebSubnet.


{
            "type": "Microsoft.Network/routeTables",
            "apiVersion": "2025-05-01",
            "name": "[parameters('routeTables_rt_spoke1_to_hub_name')]",
            "location": "eastus",
            "tags": {
                "project": "portfolio-lab1"
            },
            "properties": {
                "disableBgpRoutePropagation": false,
                "routes": [
                    {
                        "name": "route-to-hub-nva",
                        "id": "[resourceId('Microsoft.Network/routeTables/routes', parameters('routeTables_rt_spoke1_to_hub_name'), 'route-to-hub-nva')]",
                        "properties": {
                            "addressPrefix": "0.0.0.0/0",
                            "nextHopType": "VirtualAppliance",
                            "nextHopIpAddress": "10.0.1.4"
                        }
                    }
                ]
            }
        },

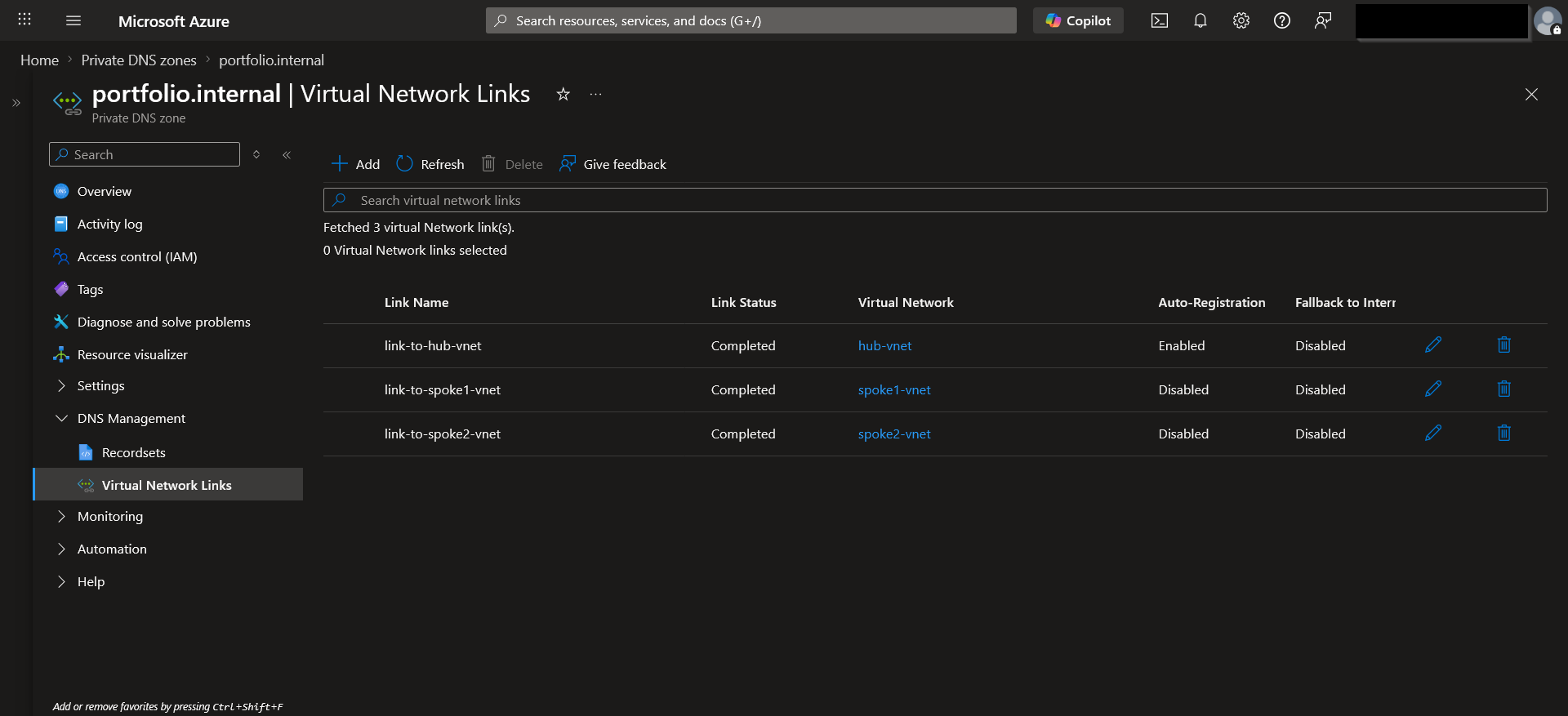

6. Configure Private DNS

Link:

hub-vnet (auto‑registration enabled)
spoke1-vnet (resolution only)
spoke2-vnet (resolution only)

7. Deploy Test VMs

Deploy two B1s Ubuntu VMs:

vm-hub-mgmt in hub ManagementSubnet
vm-spoke1-web in spoke1 WebSubnet

No public IPs; use Bastion Developer SKU for access.

Enable auto‑shutdown immediately.

8. Validate Connectivity

From vm-hub-mgmt:

Ping vm-spoke1-web (success).
SSH into vm-spoke1-web.
Resolve DNS names via Private DNS.
Attempt spoke‑to‑spoke ping (expected fail).

Use Network Watcher tools:

IP Flow Verify
Next Hop
Effective Security Rules

9. Tear Down Temporary Resources

Delete both VMs.
Delete orphaned disks and NICs.
Keep the network fabric (VNets, NSGs, peering, DNS).

Key Configurations

VNet Peering: Hub-to-spoke, non-transitive configuration.
User-Defined Routes: Custom route tables enforcing traffic through the hub.
Network Security Groups: Least-privilege inbound/outbound rules.
Private DNS: Centralized name resolution via hub DNS servers.
Azure Bastion: Secure, agentless admin access without public IPs.
IP Addressing Plan:/16 VNets with /24 subnets for scalable, non‑overlapping segmentation.

Challenges & Solutions

Challenge: B-series SKU VMs are unavailable in East US region.
Solution: The most affordable VM series SKU available in East US was the D-series SKU. I was bound to the East US region, as the networking services within Azure are region-locked. This taught me to always check regional SKU availability before planning deployments.

Challenge: Bastion Developer SKU is unavailable in East US region.
Solution: I upgraded to the Bastion Basic SKU but was unable to connect to my VMs because the RDP session connection was unstable. I tried accessing my VM using Bastion on both Mozilla FireFox and Google Chrome, as well as both browsers on Incognito mode. I cleared my browser cookies and reset my router- none of this worked. I decided to upgrade to Bastion Standard SKU to use the Native Client SHH capability, which resolved the issue.

Challenge: VMs were rebuilt multiple times.
Solution: I had to return to this project more than once after sessions took me longer than I expected. In the future, I will use ARM templates (or Bicep) to ensure consistent, repeatable VM deployments and reduce rebuild time.

Results & Metrics

Hub‑to‑Spoke Connectivity: Successful ICMP and SSH communication from hub VM to spoke VM, confirming correct peering and NSG rules.

Spoke Isolation: Spoke‑to‑spoke traffic intentionally failed, validating non‑transitive hub‑spoke design and proper segmentation.

DNS Resolution: Private DNS zone resolved VM hostnames across all VNets, demonstrating centralized name resolution.

Effective Routing: Next Hop analysis showed traffic flowing through hub as expected; UDR applied correctly to spoke1 WebSubnet.

Zero Public Exposure: All VMs accessed via Bastion Developer SKU with no public IPs, reducing attack surface to zero.

Cost Efficiency: Total project cost remained under $1; all core components (VNets, NSGs, peering) incurred no ongoing charges.

Security Enforcement: IP Flow Verify confirmed:
- SSH from hub → allowed
- HTTP from internet → allowed
- RDP from internet → denied

Key Takeaways

Azure Resource Organization: I learned how to structure a small cloud environment using Resource Groups, VNets, subnets, and role‑appropriate naming conventions to keep everything clean, predictable, and scalable.

Secure Access: Implementing Azure Bastion reinforced the importance of eliminating public RDP exposure and using platform-managed access for hardened entry into VMs.

Network Segmentation: Designing subnets with clear purposes (management, workload, jump host) helped me understand how segmentation reduces blast radius and improves operational clarity.

Operational Reliability: Rebuilding VMs while preserving the network fabric taught me how to maintain stability, avoid configuration drift, and recover cleanly without breaking dependencies.

Identity‑Aligned VM Access: Instead of relying on local admin accounts or exposing RDP, I used Azure Bastion and my Entra ID identity to access VMs. This reinforced the shift toward identity‑based administration even in small environments, without needing full RBAC role design for this project.

Documentation Discipline: Capturing architecture, configuration, and validation steps strengthened my ability to communicate technical decisions clearly.
